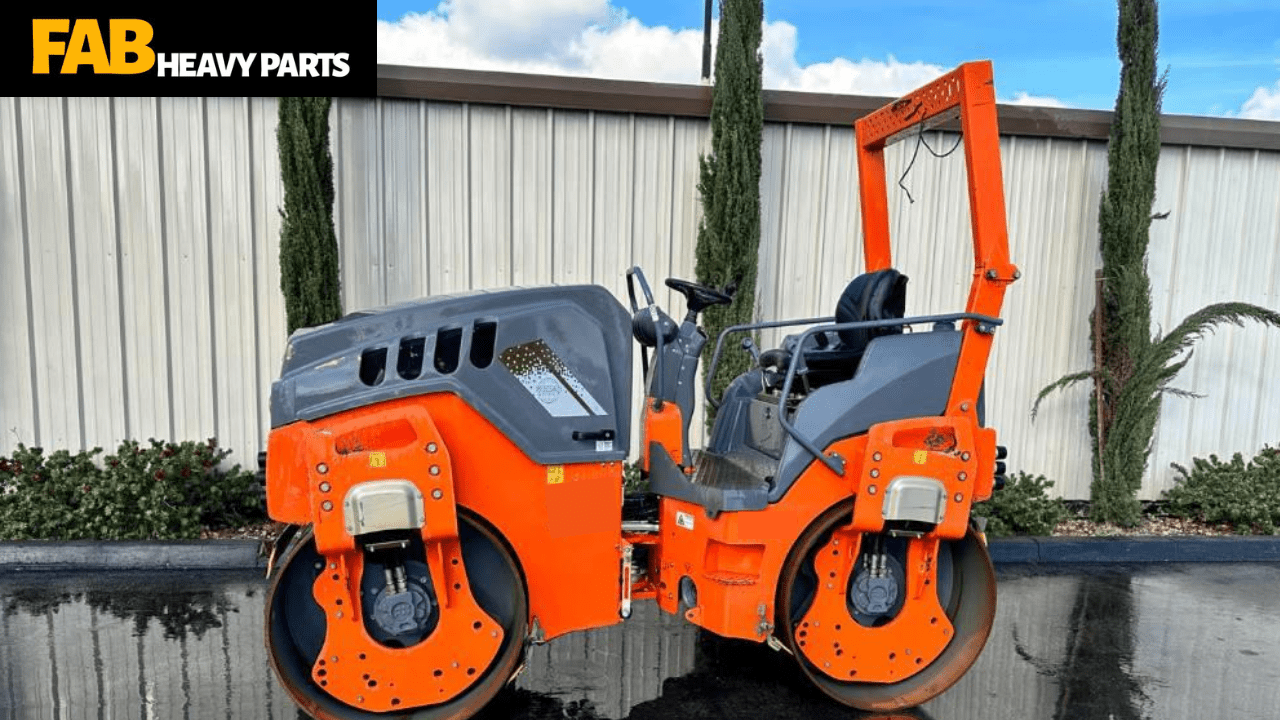

Hamm Tandem rollers HD 13i VV
Basic data
Series HD CompactLine
Name HD 13i VV
Description Tandem roller with two vibrating roller drums
Exhaust emissions category EU Stage V / EPA Tier 4
Series H285
Weights
French classification, value/class 11,1/VT0
Max. operating weight 11,819 lbs
Operating weight with ROPS 9,184 lbs
Empty weight without cab, without ROPS 8,478 lbs
Operating weight with cab 9,735 lbs
static linear load, rear 87.9
static linear load, front 91.3 lbs/in
Axle, rear 4,509 lbs
Axle, front 4,675 lbs
Machine dimensions
Total width 56.1 in
Total length 116.7 in
Maximum working width 53.1 in
Total height with cab 107.1 in
Center distance 76.8 in
Ground clearance, center 12 in
Turning radius, inside 105.9 in
Total height with ROPS 102 in
Height loading, min. 71.7 in
Drum dimensions
Drum type, front Smooth/non-split
Drum type, rear Smooth/non-split
Track offset, right 2 in
Track offset, left 0 in
Drum thickness, rear 0.7 in
Drum thickness, front 0.7 in
Drum diameter, rear 35.4 in
Drum diameter, front 35.4 in
Drum width, rear 51.2 in
Drum width, front 51.2 in
Diesel engine
Manufacturer Kubota
Model V2403-CR
Cylinders, quantity 4
Exhaust emission standard EU Stage V / EPA Tier 4
Exhaust gas after-treatment DOC-DPF
Power ISO 14396, rpm 2,700 rpm
Power ISO 14396, HP 50.9 HP
Power ISO 14396, kW 37.4 kW
Power SAE J1349, rpm 2,700 rpm
Power SAE J1349, HP 50.1 hp
Power SAE J1349, kW 37.4 kW
Travel drive
Speed, infinitely variable 0,0 - 6,8
Climbing ability, without vibration 40 %
Climbing ability, with vibration 30
Vibration
Centrifugal force, rear, II 8,775 lbs
Centrifugal force, rear, I 14,400 lbs
Centrifugal force, front, II 8,775 lbs
Centrifugal force, front, I 14,400 lbs
Amplitude, front, II 0.012 in
Amplitude, front, I 0.02 in
Vibration frequency, rear, II 3,060 VPM
Vibration frequency, rear, I 3,900 VPM
Vibration frequency, front, II 3,060 VPM
Vibration frequency, front, I 3,900VPM
Amplitude, rear, II 0.012 in
Amplitude, rear, I 0.02 in
Steering
Steering, type Articulated steering
Oscillation angle +/- 8 °
Water-sprinkling system
Water sprinkling, type Pressure
Fuel tank, capacity 19.3 gal
Water tank, capacity 75.3 gal
Tank capacity / filling capacity
Fuel tank, capacity 19.3 gal
Water tank, capacity 75.3 gal
Sound level
Acoustic power LW(A), measured 101 db(A)
Sound power level L(WA), guaranteed 106
